Custom Die Cutting Services: Plastic Films, Adhesive Tapes, Fabrics, or Silicone Rubber Products

CS Hyde Company specializes in custom die cutting of plastic films, adhesive tapes, fabrics, and silicone rubber. From simple to intricate parts and large format to small prototype runs, we can die cut parts to tight tolerance specifications. Common types of plastics and adhesive tapes we die cut include Kapton®, PEEK, PTFE made with Teflon™ Fluoroplastics, Mylar®, 3M™ transfer tapes, 3M™ VHB, and solid, sponge, foam- silicone rubber. We can produce gaskets, seals, shims, gap fillers, washers, discs, squares, and we specialize in cut parts directly from customer supplied drawings.

Why die cut with us?

• On site cutting machinery
• Stock material inventory in our warehouse
• Custom adhesive lamination done on site
• Quality inspected tolerances
• Little to no tooling cost

Types of die cutting we specialize in:

Rotary Tool Die Cutting

Rotary Die Cutting- CS Hyde Company

  • Best method for high production runs
  • Ideal for adhesive backed roll products cut to liner.
Stock Die Cut Parts

Digital Pneumatic Knife/Punch Cutting- The fastest cutting process

Digital Pneumatic Knife/Punch Cutting

  • No custom tooling required
  • Fast set up
  • Perfect for prototype parts
  • Most used for polymer films, adhesive products with liner, or silicone rubber
    products.
  • Click here to learn more about this process

Steel Tool Press Die Cutting (Stamping)

  • Large format tools can be produced for high volume runs
  • Solid steel tooling available for critical tight tolerances

Common die cutting questions!

What die cutting process is best for my application?

Selecting the die cutting method depends on certain factors of the application. We choose the best method that will allow the best tolerances, cost efficiency, and shortest lead time.

How long does the die cutting process take?

New orders 5-7 business days, when tooling is needed. Repeat orders 2-3 business days.
Often, we can produce parts on our die less cutter in 1-2 days.

Can I submit my own drawings?

Yes, CS Hyde specializes in cut parts directly from .DXF drawings. All we need is a .PDF and .DXF of the drawing in a 1:1 Ratio.

Can my company supply materials to be die cut?

Yes, CS Hyde offers consignment cutting. Materials must meet our machine specifications.

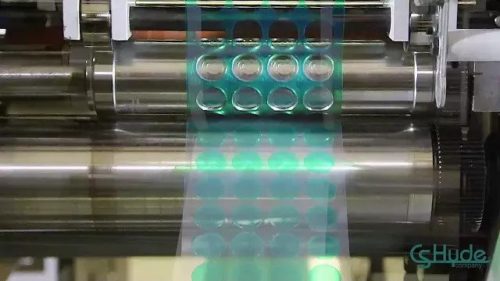

Watch Die Cutting In Action!




Die Cutting Specifications & Tolerances

Industry Focus

Industrial
Aerospace
Chemical

Food
Plastic

Die Cutting Methods

Cut to Liner
Thru Cut
Kiss Cut

Butt Cut
Perforated
Split Liner

Materials we die cut

Tapes
Fabrics
Films
Foams
Silicones
ABS
Acetal
FEP
Fiberglass
Foil
Halar®
HDPE
Kapton®
Mylar®
PEEK
PES

PFA
PolyUrethane
PPS
PVDF
Rubber
Silicone
Silicone Sponge
TPX®
Teflon™ Fluoroplastic
efzel®
Transfer Adhesives
Udel®
UHMW
Ultem®
VHB
Will work with materials supplied by clients

Characteristics

Custom Shapes
Liners Available
Adhesives Available
Custom Put Ups

Private Labeling
First Article
Anti-Stat Packaging Available

Die Cut Products

In Stock Die-Cut Shapes
Discs
Gaskets
Washers

Squares
Rectangles
Custom jobs made to customer specifications

Additional Services Provided

Belting
Laminating

Sheeting
Slitting

Production Volume

Min
1 unit

Prototype (Client handles tooling costs)

Low Volume
Small Run
High Volume
Large Run

Lead Times

Min (First Time Orders)
7 Days
Min (Subsequent Orders)
2 Days

Max (Subsequent Orders)
5 Days

Width

Max (Cut to Liner)
10 in
254 mm

Max (Thru Cut)
19 in
482.6 mm

Length

Max (Cut to Liner)
12 in
304.8 mm

Max (Thru Cut)
30 in
762 mm

Thickness

Max (Cut to Liner)
.020 in
.508 mm

Max (Thru Cut)
.125 in
3.175 mm

Tolerance (+/-)

±.015 in
Tighter Tolerances Available Upon Request

Areas Served

Ship National & International

Industry Standards

ASTM American Society for Testing and Materials
Mil-Spec Military Specifications
RoHS Restriction Of Hazardous Substances (Compliant)
WEEE

Proper Disposal of all electronic equipment via contract with Waste Management
Woman Owned Business
Small Business

File Formats

BMP Bit Mapped Graphics
GIF Graphics Interchange Format
JPG or JEPG Joint Photographic Experts Group

PDF Portable Document Format
TIFF Tagged Image File Format
